Portal introduction

The Portal is your graphical interface to Opencell for day-to-day business.

Our objective is expose all Opencell features in this interface.

Current version offers the following applications:

• Catalog Manager, to configure complex offers and offer models

• Customer Care, to manage customers, contracts and subscriptions

• Finance, to manage accounting

• Administration, for reference data and administration

• Operations, to manage bill run, mediation and queries

• Marketing manager, to use predefined offer model

Overview

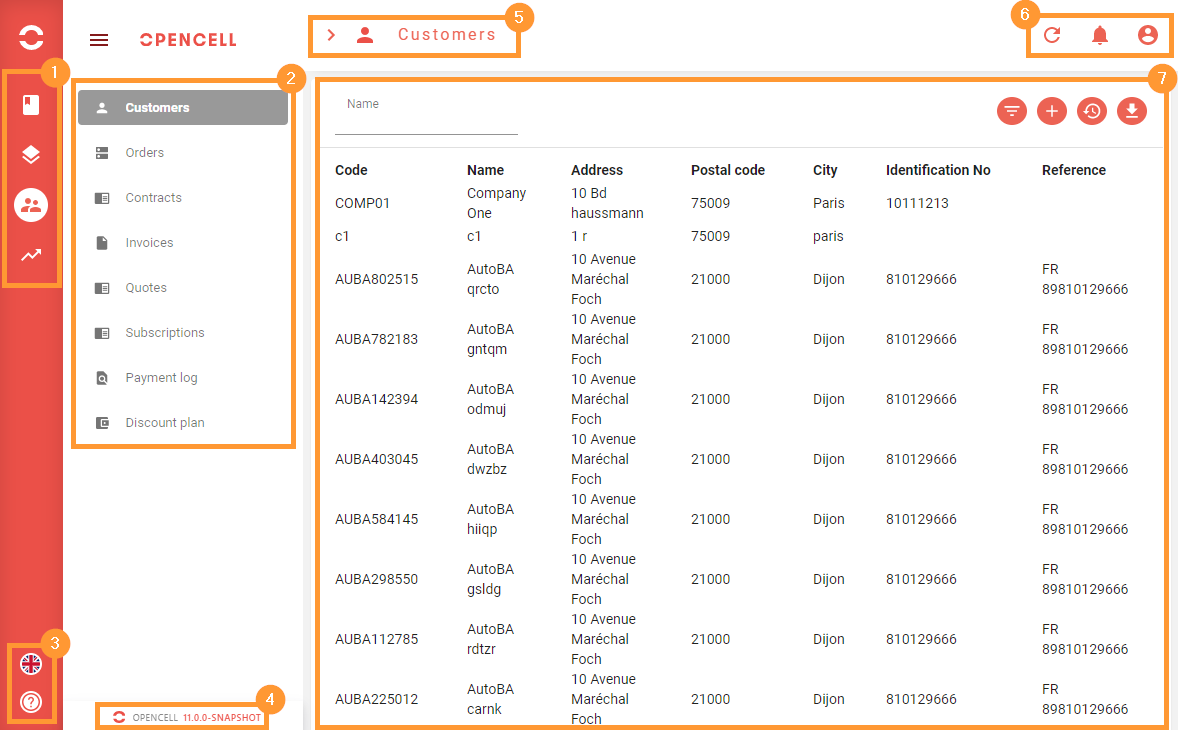

General layout

1. Applications menu:
   There you can choose the application you want to use

2. Application menu:
   The different modules of the current application

3. Select your favorite language and go to Opencell Support

4. Click here to get additional version information (useful for support)

5. Breadcrumbs telling you where you are

6. Refresh view, check notifications, view user profile

7. Main panel where the actual work is done

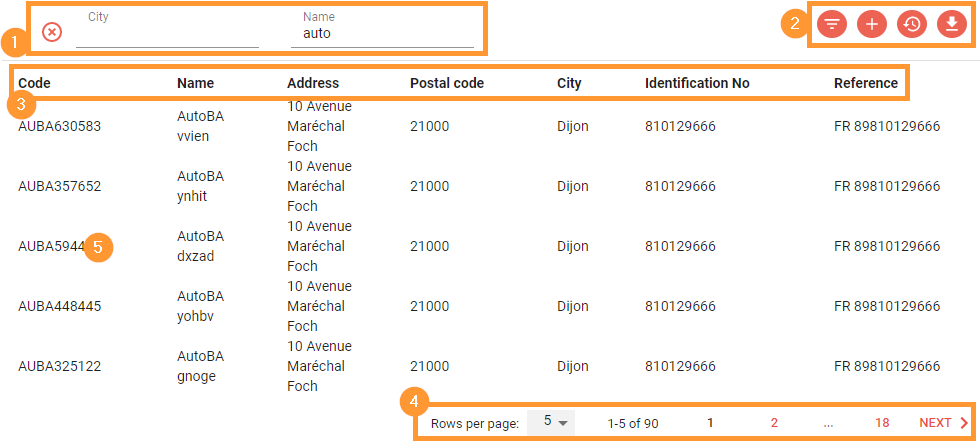

Lists and forms

Most entities are accessible via a filterable list.

1. Filters
   In the exemple below, “Name” is the default filtering criterium and “City” is and additional criterium.
   You can remove additional criteria by clicking on the cross button.

2. Actions

   1. Add filter

   2. Create new entity

   3. Previously selected entities

   4. Download filtered list

3. Sort results by clicking on column titles

4. Navigation bar

5. Click on a line to open the form for the entity

API based

When it comes to APIs, we are our first customer as while our legacy admin GUI was directly built into the core, the portal uses only APIs.

As a result, everything you can do in the portal can be done using APIs.
